Twin-Hydraulics-Mobile Power Units
UNIVERSAL / AG POWER UNITS/PACKS
  • Gas engines ranging from 5.5-18 HP (Briggs & Stratton & Honda)
  • Flows ranging from 2-11GPM
  • Tank sizes are 10, 15, 20, 30 or 40 gallons
  • Forced air cooling available with electric start engines
  • Heavy duty steel tanks with baffle
  • High performance gear pump
  • Pressure and tank connections on power unit to connect to valve(s)
  • 10 micron return filter
  • 100 mesh inlet strainer
  • Filler breather, basket
  • Sight oil level/temp. gauge
  • Easy tank bolt down
  • Electric or pull start available
  • Pressure gauge
  • Relief valve not included, can be added
  • Custom pressure and tank fittings
  • Choke, throttle & key standard with electric start
  • Drain plug
  • Custom paint color
  • Tested
  • Owners manual
  • Up to a 1.5-2 week lead time
  • Very competitive pricing
ITEM #8001
8 HP GAS ENGINE
5.75 GPM
1500 PSI
10 GALLON TANK
1/2" PRESSURE AND TANK
CONNECTIONS
ITEM #8002
10 HP GAS ENGINE
5.75 GPM
2000 PSI
10 GALLON TANK
1/2" PRESSURE AND TANK
CONNECTIONS

ITEM #8003
13 HP GAS ENGINE
6.75 GPM
2100 PSI
15 GALLON TANK
1/2" PRESSURE AND TANK
CONNECTIONS

ITEM #8004
15 HP GAS ENGINE
8 GPM
2000 PSI
15 GALLON TANK
1/2" PRESSURE & 3/4"
RETURN CONNECTION

Common Power Units/Packs:
PRICE: $1349 With Briggs &
Stratton I/C Pull Start Engine
PRICE: $1499 With Honda Pull Start
Engine
PRICE: $1499 With Briggs &
Stratton I/C Pull Start Engine
PRICE: $1699 With Honda 11HP
Pull Start
PRICE: $1935 With Honda GX
Electric Start Engine
PRICE: $1749 With Honda 13HP
Pull Start Engine
PRICE: $2399 With  Kohler
Command, Electric Start Engine
Check Around, We Have The Lowest Prices & We Do Not
Use Cheap Clone Engines Or Discounted Parts!
Compact, Light Weight Gas Power Units
Standard Features:

* 10 Gallon High Quality Tank
* 6.5 HP Briggs & Stratton Engine (Pull Start) or 5 HP Honda GC
* Honda 5.5/6.5 HP GX Engines Available
* High Performance Pressure Loaded Gear Pump
* 10 Micron Return Filter
* Cleanable 100 Mesh Inlet Strainer
* 0-3000 PSI Gauge
* Filler Breather (Basket Style)
* Oil Sight Level/Temp Gauge
* 3/4" Drain Plug
* Removable Tank Lid For Easy Cleaning
* 4 Place Bolt Down Holes On Tank
* 1/2" Male JIC Connection On Filter(Tank)
* 3/8" Male JIC Connection On Pressure
* Relief Valve Not Included, Customer Circuit Must Have One
* Light Weight
* Gray Paint
* Fully Tested
* Owners Manual
* 1 Week Lead Time
If your looking for a reliable, low cost,
compact gas power unit to hook up to
your valve(s) or circuit, look no further.
These units provide a compact design
(16.5"x21"x30"), with removable lid for
easy clean-out.  Take a look at the tables
below for further specifications.
ITEM #
 FLOW (GPM)
 MAX
PRESSURE (PSI)
 CASH PRICE $
(ADD 3% FOR CREDIT
CARD)
9001
 4.8
 1400
 $999
9002
 3.9
 1700
 $999
9003
 3.25
 2000
 $999
9004
 2.5
 2600
 $999
9005
 1.9
 3000
 $999
Don't see what you are looking for? click here to get quote.
Copyright © 2006 Twin Hydraulics. All rights reserved.
Prices, Products and Availability subject to change at any time without notice.
6.5 HP Briggs & Stratton I/C Engine
ITEM #
 FLOW (GPM)
 MAX
PRESSURE (PSI)
 CASH PRICE $
(ADD 3% FOR CREDIT
CARD)
9006
 4.8
 1100
 $949
9007
 3.9
 1325
 $949
9008
 3.25
 1600
 $949
9009
 2.5
 2100
 $949
9010
 1.9
 2750
 $949
5 HP Honda GC Engine
Simple, Reliable....Unbeatable.
Different pressures and flows
available for each engine size
13HP Mobile Gas Power
Unit (Demo)
(Less Than 5 Hrs of Operation!)
This mobile gas hydraulic power unit is a
perfect setup around the farm, in the field, or
on the job.  With it's wheels and handle it
makes for easy transport to where it is
needed.  The power unit is equipped with a
manual valve to run single/double acting
cylinders along with hydraulic motors.  Great
for log splitters!
Item #9100
Specs:

*6.7 GPM
*2200 PSI
*High Performance Gear Pump
*13 HP OHV Engine (pull start)
*10 Gallon Oil Tank
*10" Pneumatic Wheels
*1/2" Male JIC Connectors On Valve
*Pull Handle
*Manual Valve (detent in 1 position spring center
in the other)
*10 Micron Return Filter
*100 Mesh Inlet Strainer
*Pressure Gauge
*Relief Valve
*Filler Breather
*Drain Plug
*Like New Condition
*Price: $999+ Shipping
Low Profile, Universal/Semi Trailer Gas
Hydraulic Power Units/Packs
Features:

  • Heavy Duty Steel Frame
  • 4 Hole Bolt Down On Frame
  • High Performance Gear Pump
  • 10 Micron Return Filter
  • 100 Mesh Inlet Strainer
  • Filler Breather
  • Battery Tray If Electric Start (Batteries Not Included)
  • Pressure Gauge
  • Pressure & Tank Ports To Hook To Your Valving/System
  • Briggs, Kohler Or Honda Engines
  • Key Switch, Fuel Tank, Choke & Throttle Included With Engine
  • Heavy Duty Hydraulic Tank
  • Drain Plug On Tank
  • Removable Tank Lids
  • Sight Oil Temp./Level Gauge
  • Painted/Tested
  • Owners Manual
  • Valving/Cooling Available
  • Competitive Pricing
Shown above is an electric start, 11 HP Honda with optional relief
valve, remote throttle, choke & key switch (Used on a detachable
lowboy trailer)

*Prices are the same as above (Items 8001-8004)

*Pressures, engines & flows are the same as listed
above

*Item #'s are: 8001B, 8002B, 8003B & 8004B

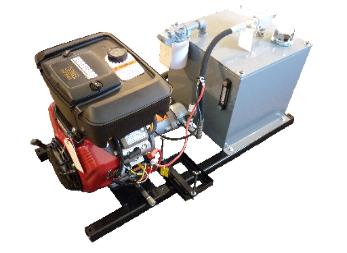

Shown above is an electric start, 18HP Vanguard with optional
relief valve, used for dovetail trailer with hydraulic winch.
10.8 GPM @ 2000 PSI
