| D03/D05 Modular Hydraulic Sandwich Power Valves: |
| Most hydraulic valves are instock and ship straight to you from our supplier!! |

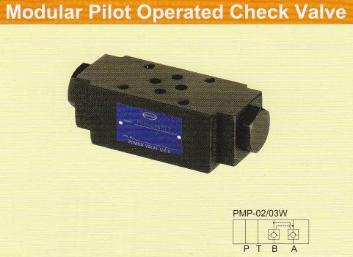

Modular Hydraulic Dual Pilot Operated Check Valve
Cracking Pressure: 73 PSI
Function Port: A & B
Working Pressure: 3625 PSI
D03 Max GPM: 8
D05 Max GPM: 16
Valve Size: D03 1/4" D05 3/8"
Cracking Pressure: 73 PSI
Function Port: A & B
Working Pressure: 3625 PSI
D03 Max GPM: 8
D05 Max GPM: 16
Valve Size: D03 1/4" D05 3/8"

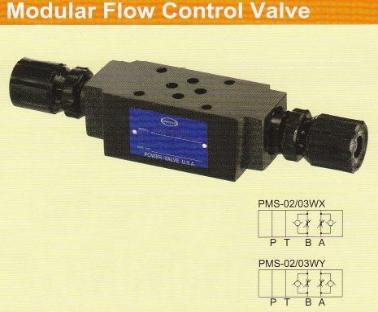

Modular Hydraulic Dual Flow Control Valve
Cracking Pressure: N/A
Function Port: A & B
Working Pressure: 3625 PSI
D03 Max GPM: 8
D05 Max GPM: 16
Valve Size: D03 1/4" D05 3/8"
Meter Direction: In Or Out
Cracking Pressure: N/A
Function Port: A & B
Working Pressure: 3625 PSI
D03 Max GPM: 8
D05 Max GPM: 16
Valve Size: D03 1/4" D05 3/8"
Meter Direction: In Or Out

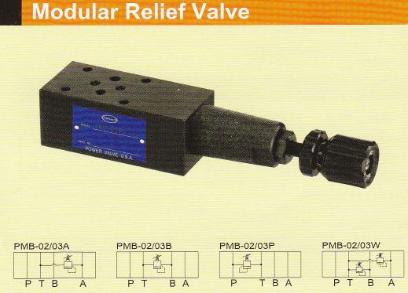

Modular Hydraulic Relief Valve
Adjustment Range: 1015-3045 PSI
Function Port: P, A, B, A & B
Working Pressure: 3625 PSI
D03 Max GPM: 8
D05 Max GPM: 16
Valve Size: D03 1/4" D05 3/8"
Flow Direction: Relieves To Tank Port On All Models
Adjustment Range: 1015-3045 PSI
Function Port: P, A, B, A & B
Working Pressure: 3625 PSI
D03 Max GPM: 8
D05 Max GPM: 16
Valve Size: D03 1/4" D05 3/8"
Flow Direction: Relieves To Tank Port On All Models

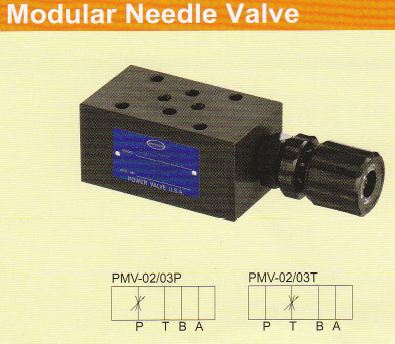

Modular Hydraulic Needle Valve
Flow Adjustment Range: D03: .08-8 GPM, D05: .13-16 GPM
Function Port: P, T
Working Pressure: 3625 PSI
D03 Max GPM: 8
D05 Max GPM: 16
Valve Size: D03 1/4" D05 3/8"
Meter Direction: In On "P" Or Out On "T"
Flow Adjustment Range: D03: .08-8 GPM, D05: .13-16 GPM
Function Port: P, T
Working Pressure: 3625 PSI
D03 Max GPM: 8
D05 Max GPM: 16
Valve Size: D03 1/4" D05 3/8"
Meter Direction: In On "P" Or Out On "T"

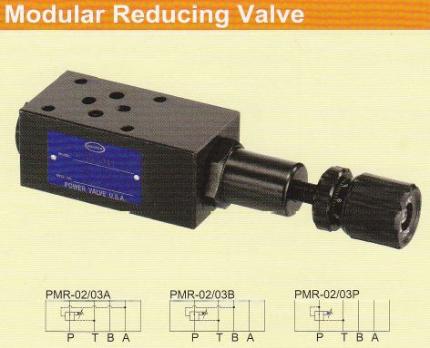

Modular Hydraulic Pressure Reducing Valve
Adjustment Range: 1015-3045 PSI
Pilot Line: P, A, B
Working Pressure: 3625 PSI
D03 Max GPM: 8
D05 Max GPM: 16
Valve Size: D03 1/4" D05 3/8"
Leakage: Relieves To Tank Port On All Models
Adjustment Range: 1015-3045 PSI
Pilot Line: P, A, B
Working Pressure: 3625 PSI
D03 Max GPM: 8
D05 Max GPM: 16
Valve Size: D03 1/4" D05 3/8"
Leakage: Relieves To Tank Port On All Models
Bolt Kits For D03 & D05
1 Modular Valve To 4 Modular Valves
Bolt Kits Required For Mounting To
Manifold Or Subplates
Bolt Kit Includes 4 Bolts
1 Modular Valve To 4 Modular Valves
Bolt Kits Required For Mounting To
Manifold Or Subplates
Bolt Kit Includes 4 Bolts
